1 x HDMI™ 埠1 x DisplayPort1 x USB 20Gbps Type-C1 x USB 2.0 Type-A4 x USB 5Gbps Type-A2 x USB 10 Gbps Type-A1 x Realtek® 2.5Gb 乙太網路埠1 x Wi-Fi 模組1 x 光纖 S/PDIF 輸出埠5 x 音訊插孔
上置 I/O
2 x USB 3.0 Type-A
1 x HD Audio 音訊
1 x USB 3.2 (Gen 2) Type-C
AI 電競系統（下）
圖片僅供參考
後置 I/O
1 x HDMI™ 埠1 x DisplayPort4 x USB 2.0 Type-A3 x USB 10 Gbps Type-A1 x Realtek® 2.5Gb 乙太網路埠1 x USB 20Gbps Type-C4 x USB 5Gbps Type-A1 x Wi-Fi 模組1 x 光纖 S/PDIF 輸出埠3 x 音訊插孔
前置 I/O
1 x USB 3.2 (Gen 2) Type-C
1 x HD Audio 音訊
2 x USB 3.0 Type-A
Product Specifications
P/N
Model

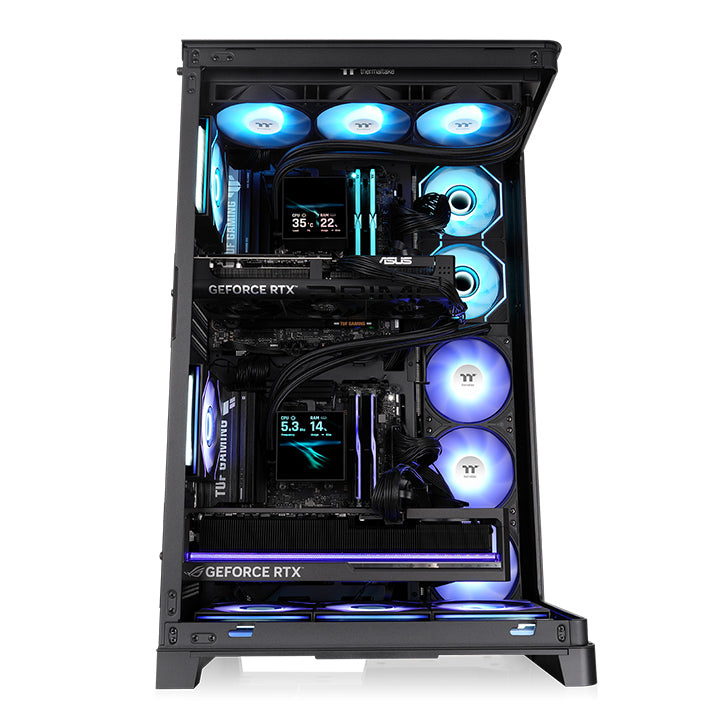

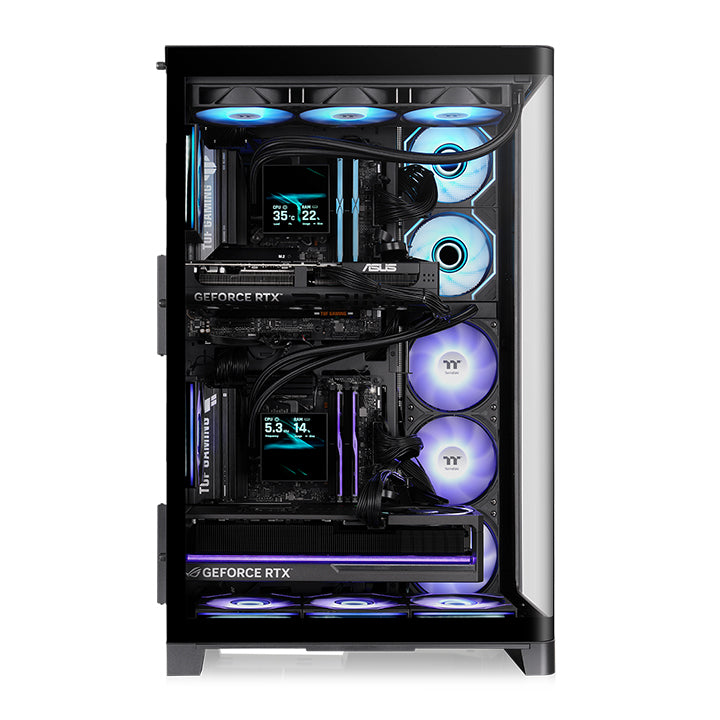

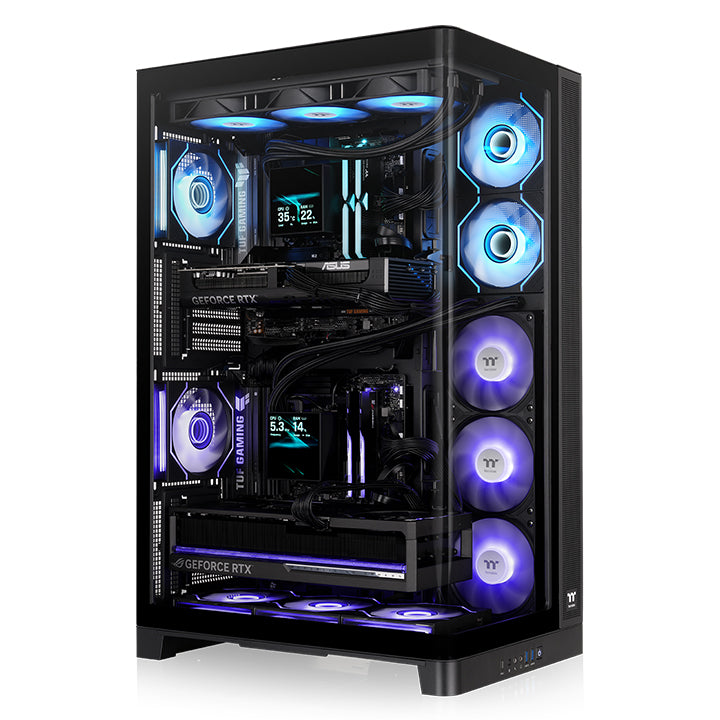

CAPO X Dual AI Gaming PC
Tech Specs
AI Gaming System
Multimedia Workstation System
Processor
AMD Ryzen™ 9 9950X
Intel® Core™ Ultra 9 285K
Chipset
AMD B850 Chipset
Intel® B860 Chipset
Graphics
GeForce RTX™ 5090
GeForce RTX™ 5070
Memory
64 GB DDR5 Memory (2 x 32GB)
32 GB DDR5 Memory (2 x 16GB)
Storage
2TB PCIe Gen4 NVMe SSD
2TB PCIe Gen4 NVMe SSD
Cooling Solution
Thermaltake 360 AIO Liquid Cooler
Thermaltake 360 AIO Liquid Cooler
Power Supply
1650W- 80Plus Titanium PSU (ATX 3.1)
1000W- 80Plus Platinum PSU (ATX 3.1)
Front / Top I/O Ports
1 x USB 3.2 (Gen 2) Type-C 2 x USB Gen 3.0 Type-A Power Button Reset Button 1 x HD Audio
1 x USB 3.2 (Gen 2) Type-C 2 x USB Gen 3.0 Type-A Power Button Reset Button 1 x HD Audio

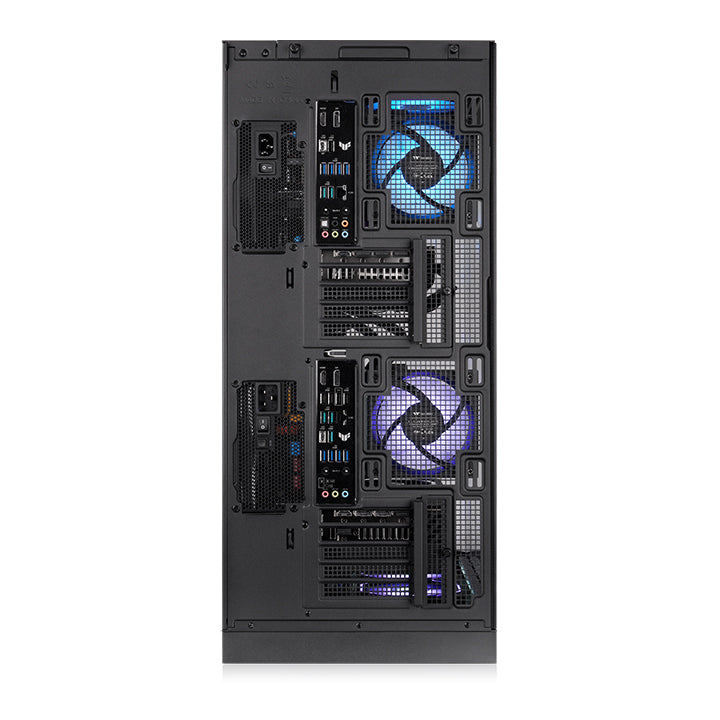

Rear I/O Ports
1 x USB 20Gbps Type-C 3 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 4 x USB 2.0 Type-A 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 4 x DisplayPort 2.1b (1 on MB, 3 on GPU) 3 x HDMI™ Port (1 on MB, 2 on GPU)
1 x USB 20Gbps Type-C 2 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 1 x USB 2.0 Type-A 1 x DisplayPort 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 4 x DisplayPort 2.1b (1 on MB, 3 on GPU) 2 x HDMI™ (1 on MB, 1 on GPU)
Expansion Slots
1 x PCIe 5.0 x16 (Supports x16 mode)* 1 x PCIe 4.0 x1 1 x PCIe 5.0 M.2 Slots 2 x PCIe 4.0 M.2 Slots (Includes used) *Specifications vary by CPU types.
1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 5.0 M.2 Slots 2 x PCIe 4.0 M.2 Slots (Includes used)
Networking
1 x Realtek® 2.5Gb Ethernet Wi-Fi 7* Bluetooth®**
1 x Realtek® 2.5Gb Ethernet Wi-Fi 7* Bluetooth®**
*The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. Wi-Fi features may vary depending on the operating system **The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
*The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. Wi-Fi features may vary depending on the operating system **The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio-output
High Definition Audio
High Definition Audio
Operating System
Windows 11 Pro
Windows 11 Pro
Weight
Dimensions
H691 x W305 x D448 mm
H691 x W305 x D448 mm
AI Gaming System
Processor
AMD Ryzen™ 9 9950X
Chipset
AMD B850 Chipset
Graphics
GeForce RTX™ 5090
Memory
64 GB DDR5 Memory (2 x 32GB)
Storage
2TB PCIe Gen4 NVMe SSD
Cooling Solution
Thermaltake 360 AIO Liquid Cooler
Power Supply
1650W- 80Plus Titanium PSU (ATX 3.1)
Front / Top I/O Ports
1 x USB 3.2 (Gen 2) Type-C 2 x USB Gen 3.0 Type-A Power Button Reset Button 1 x HD Audio
Rear I/O Ports
1 x USB 20Gbps Type-C 3 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 4 x USB 2.0 Type-A 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 4 x DisplayPort 2.1b (1 on MB, 3 on GPU) 3 x HDMI™ Port (1 on MB, 2 on GPU)
Expansion Slots
1 x PCIe 5.0 x16 (Supports x16 mode)* 1 x PCIe 4.0 x1 1 x PCIe 5.0 M.2 Slots 2 x PCIe 4.0 M.2 Slots (Includes used) *Specifications vary by CPU types.
Networking
1 x Realtek® 2.5Gb Ethernet Wi-Fi 7* Bluetooth®**
*The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. Wi-Fi features may vary depending on the operating system **The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio-output
High Definition Audio
Operating System
Windows 11 Pro
Weight
Dimensions
H691 x W305 x D448 mm
Multimedia Workstation System
Processor
Intel® Core™ Ultra 9 285K
Chipset
Intel® B860 Chipset
Graphics
GeForce RTX™ 5070
Memory
32 GB DDR5 Memory (2 x 16GB)
Storage
2TB PCIe Gen4 NVMe SSD
Cooling Solution
Thermaltake 360 AIO Liquid Cooler
Power Supply
1000W- 80Plus Platinum PSU (ATX 3.1)
Front / Top I/O Ports
1 x USB 3.2 (Gen 2) Type-C 2 x USB Gen 3.0 Type-A Power Button Reset Button 1 x HD Audio
Rear I/O Ports
1 x USB 20Gbps Type-C 2 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 1 x USB 2.0 Type-A 1 x DisplayPort 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 4 x DisplayPort 2.1b (1 on MB, 3 on GPU) 2 x HDMI™ (1 on MB, 1 on GPU)
Expansion Slots
1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 5.0 M.2 Slots 2 x PCIe 4.0 M.2 Slots (Includes used)
Networking
1 x Realtek® 2.5Gb Ethernet Wi-Fi 7* Bluetooth®**
*The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. Wi-Fi features may vary depending on the operating system **The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
