1 x HDMI™ 埠2 x USB4® 40Gbps Type-C1 x USB (10 Gbps) Type-C1 x USB (20 Gbps) Type-C，支援 30W PD/PPS 快充1 x Wi-Fi 模組1 x 光纖 S/PDIF 輸出埠9 x USB 10 Gbps Type-A1 x Realtek® 5Gb 乙太網路2 x 音訊插孔
上置I/O
2 x USB 3.0 Type-A
1 x HD Audio
1 x USB 3.2 (Gen 2) Type-C
Product Specifications
P/N
Tech Specs
A550 AI Workstation System
Processor
AMD RYZEN™ 9 9950X
Chipset
AMD X870E Chipset
Graphics
1 x GeForce RTX™ 5090
Memory
128 GB DDR5 Memory
Storage
4TB PCIe Gen4 NVMe SSD
Cooling Solution
Thermaltake 360 AIO Liquid Cooler
Power Supply
1650W- 80Plus Titanium PSU (ATX 3.1)
Top I/O Ports
1 x USB 3.2 (Gen 2) Type-C 2 x USB Gen 3.0 Type-A Power Button Reset Button 1 x HD Audio

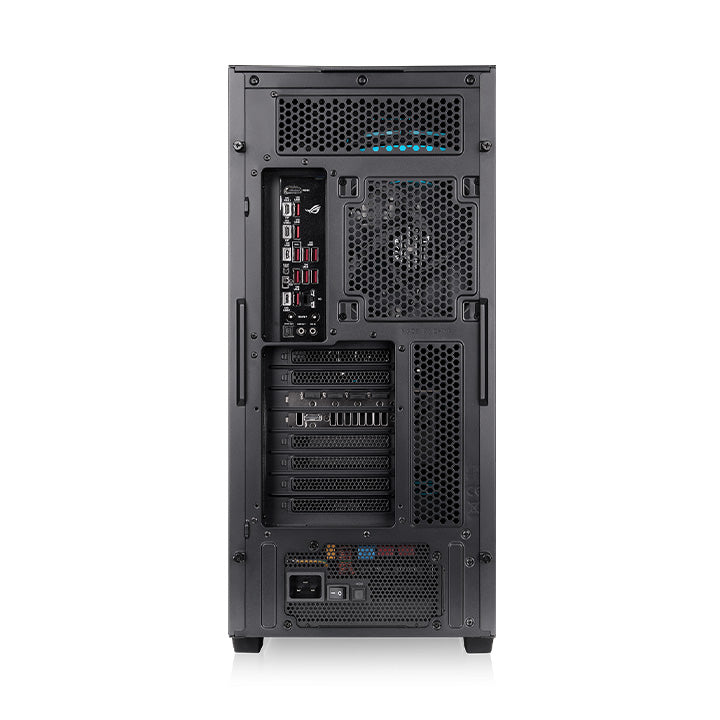

Rear I/O Ports
2 x USB4 (40Gbps) Type-C 1 x 20Gbps Type-C up to 30W PD Fast-charge 9 x USB 10Gbps Type-A 1 x USB 10Gbps Type-C 1 x Wi-Fi module 1 x Realtek® 5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 3 x DisplayPort 2.1b 3 x HDMI® Port (1 on MB, 2 on GPU)
Expansion Slots
1 x PCIe 5.0 x16 slot (supports x16 mode) 1 x PCIe 4.0 x16 (supports x4 mode) 3 x PCIe 5.0 M.2 Slots 2 x PCIe 4.0 M.2 Slots (Includes used)
Networking
1 x Realtek® 5Gb Ethernet Wi-Fi 7* Bluetooth®** *The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. Wi-Fi features may vary depending on the operating system **The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
