透視 The Tower 500 中直立式機殼 透視 The Tower 500 中直立式機殼 透視 The Tower 500 中直立式機殼 透視 The Tower 500 中直立式機殼 透視 The Tower 500 中直立式機殼 透視 The Tower 500 中直立式機殼
透視 The Tower 500 中直立式機殼
缺貨
型號
CA-1X1-00M1WN-00
NT$4,990.00

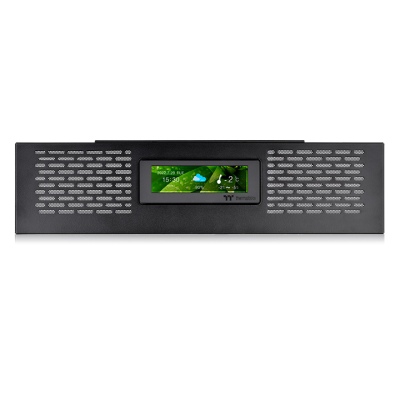

透視The Tower 500是一台中直立式機殼，以三面4mm厚強化玻璃提供全景視野，機殼內配有兩顆120mm標準型風扇。此機殼可支援至12” x 12” E-ATX主機板，並容納各類高階硬體。同時也可搭配單獨販售的LCD液晶螢幕配件組，以配件組中的3.9吋LCD液晶螢幕來達到極致的視覺饗宴。

因傳奇而生

空間不再被侷限

無論您是創作者、愛好者、玩家或是一般使用者，透視 The Tower 500新穎的設計以及強大的擴充性都能滿足您的使用需求。

以傳奇的透視The Tower 900超級機殼為藍本，透視 The Tower 500的發想方向為承襲所有重要功能，並盡可能地縮小總體積。最重要的是，透視 The Tower 500 能夠支援一體式水冷散熱器，也可安裝E-ATX主機板(最大12 x 12吋)或ATX及其以下的主機板，使用者可依個人喜好組裝電腦。


  • 圖片僅供參考
    •
打造你的夢想主機

透視The Tower 500的內部設計能滿足一體式水冷散熱器及客製化水冷散熱系統的裝機需求，機殼以三面4mm厚的強化玻璃安裝於前方以及左右兩側，達到全方位透視效果，在保護機殼內零組件的同時，能夠180度一覽您驕傲的內裝設計。


  • 圖片僅供參考
    •

  • 圖片僅供參考
  • 欲連接2個以上的LCD液晶螢幕顯示器，
    請使用有2個以上USB 9 Pin接孔配置的主機板。
    •
搭配360mm一體式水冷散熱器 散熱效能更強勁
散熱器支架可安裝在機殼右側，且最大支援至 360mm 一體式水冷散熱器，或任何 399mm 以下的 水冷排，此空間足以在水冷排的左側安裝三顆風扇吸風、右側安裝三顆風扇排風，提供最佳的風流以及風壓，達到Push-Pull的效果。右側面板亦可翻轉 180 度，讓玻璃面板與網孔位置互換，並從網孔中直接排出熱氣，增強通風。
pure css slider
pure css slider
pure css slider
pure css slider
pure css slider


  • 圖片僅供參考
    •
不用麻煩了! 我們都幫你測試過了!

為確保產品的高品質，曜越科技堅持在嚴苛的條件下，對我們的產品進行壓力測試。我們將透視The Tower 500安裝高階的處理器、顯示卡、主機板，以玩家常見硬體規格進行了三十分鐘的滿載測試，能更了解機殼在實際應用情況下的性能表現。

測試系統規配


  • CPU：Intel Core i9 12900K (TDP 125W/OC 241 W)
  • M/B：ASUS ROG MAXIMUS Z690 HERO
  • GPU：GIGABYTE AORUS GeForce RTX™ 3090 XTREME
  • RAM：TOUGHRAM Z-ONE RGB DDR5 64G (16G x 4)
  • SSD：Plextor PX-128M6V
  • PSU：Toughpower  TF1 1550W-TT Premium Edition

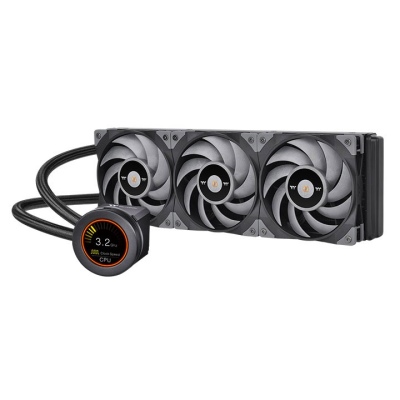

  • CPU Cooler：TOUGHLIQUID Ultra 360 All-In-One Liquid Cooler
  • FANs： AIO: TOUGHFAN Turbo 120mm x 3
  • Chassis: Standard Fan x 2 (Rear)

  • 圖片僅供參考
    •






聰明設計打造出色散熱效果

以下熱顯像圖是我們在熱測試期間所拍攝，在設計這款機箱時的精準規劃，使冷空氣能順利進氣，熱空氣能迅速排出出氣口，確保機殼內部始終保持較低的溫度。

pure css


pure css slider
pure css slider



  • 圖片僅供參考
    •
儲存空間 任君選擇

為3.5吋或2.5吋HDD打造而裝置的支架，最多可擴展安裝8個3.5吋 HDD或4個3.5吋HDD加8個2.5吋SSD，不但能有效節省硬體安裝空間，更能滿足您對於電腦容量的需求。


  • 圖片僅供參考
    •
硬體規格
風扇
風扇
水冷排

Motherboard

Mini ITX, Micro ATX, ATX, E-ATX (12" x 12")

Storage

3.5” HDD x 6
2.5” SSD x 4

Storage

3.5” HDD x 2
2.5” SSD x 4

PSU Length

Max. 200 mm

GPU Length

355 mm (w/o PSU Cover)
325 mm (w/ PSU Cover)

Top Fan

120 mm x 2
140 mm x 2

Right Side Fan

120 mm x 3

PSU Cover Fan

120 mm x 2
140 mm x 2

Bottom Fan

120 mm x 2

Rear Fan

120 mm x 2
140 mm x 2

Bottom Radiator

120 mm x 1, 240 mm x 1

Right Side Radiator

120 mm x 1
240 mm x 1
360 mm x 1 (Under 399 mm)

Top Radiator

120 mm x 1, 240 mm x 1
140 mm x 1, 280 mm x 1






更多信息
型號 CA-1X1-00M1WN-00
系列 透視 The Tower 系列
機型 Mid Tower
尺寸 (高*寬*深) 608 x 388 x 398 mm
(23.9 x 15.3 x 15.7 inches)
重量 14.8 kg / 32.6 lbs.
側窗 4mm Tempered Glass x 3
顏色 Black
材質 SPCC
散熱系統 Rear(exhaust):
120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 2
儲存裝置 4 x 3.5”, 8 x 2.5”
or 8 x 3.5”
PCI 插槽 9
適用主機板 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 12” (E-ATX)
I/O 連接埠 USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1
電源供應器 Standard PS2 PSU (optional)
風扇支援 Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right Side:
3 x 120mm, 2 x 120mm, 1 x 120mm
Rear:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Power Cover:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Bottom(Vertical/Horizontal):
2 x 120mm, 1 x 120mm
水冷排支援 Top:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right Side:
1 x 360mm or 1 x 360mm Custom LCS radiator (max length 399mm), 1 x 240mm, 1 x 120mm
Bottom(Vertical/Horizontal):
1 x 240mm, 1 x 120mm
備註 CPU cooler height limitation:
275mm
VGA length limitation:
325mm(With power cover)
355mm(Without power cover)
PSU length limitation:
200mm

使用手冊

  • 檔名
  • 描述
  • 尺寸
  • Version
  • Release Date
